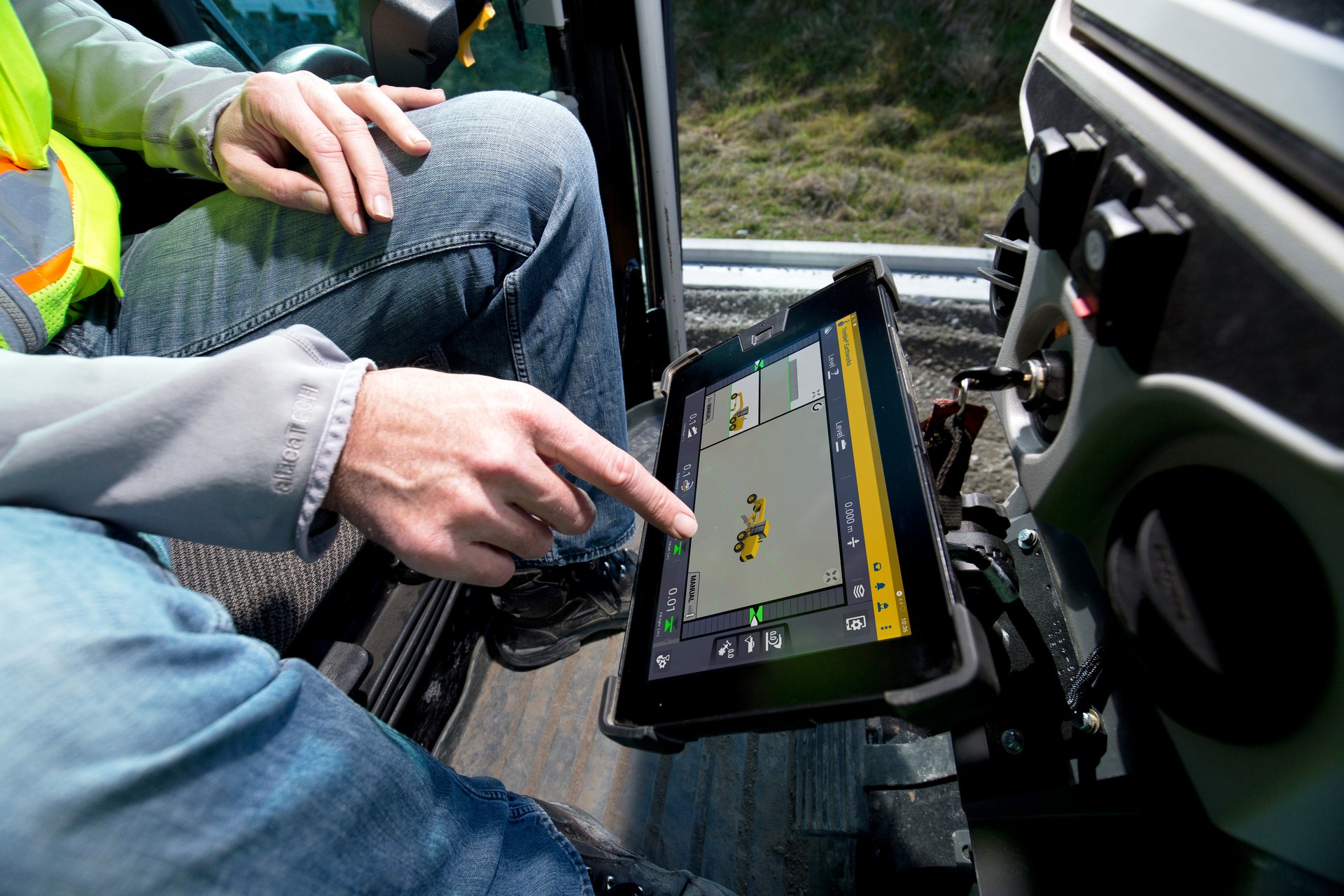

Trimble Earthworks
Earthworks for Graders has a machine control system that is very easy to use and works faster and more accurately than ever before. Dual GNSS devices and new IMU sensors enable high working speeds with very precise power.
Alternatively, total station control is also possible. The advantage of this option is millimeter accuracy for fine tuning and working in areas where Satellite reception is not possible or limited.
For maximum freedom of movement on steep slopes or to create complex terrain, the 3D GNSS control system can be mounted without masts on the blade. For this purpose, the receiver is mounted in the cab and one at the front of the machine. Ask form our sales for compatibility for your grader!
Mastless 3D
"Mastless" takes grading to the next level by integrating the GNSS (Global Navigation Satellite System) receivers (GPS) and IMU (Inertial Measurement Unit) grade sensors right into the grader, without restrictions from masts (antenna-like sensors) sticking out or cables getting in the way.
Increased Operator Performance & Visibility
Without the GNSS blade masts, the operator will experience a better overall performance and a safer environment.
Do More Work
The mastless system allows for closer proximity work such as alongside buildings, all while maintaining accurate grade. This grader is suited for finishing applications, such as side slopes and drains, that were not previously possible due to the existing mast positions.
Out with the old. In with the new.
Before Mastless Motor Graders, tall masts GPS systems had to be mounted to the ends of the moldboard, exposing components to potential damage from the environment and theft.
Due to the threat damage, the masts often had to be removed and remounted daily resulting in unnecessary downtime and added hassles for the operator. The constant removal and installation of the masts causes faster wear and tear, and increases the ongoing cost associated with running the grader.
The location of the masts also limited the blade's range of motion, resulting in limited types of applications.
Mastless system can be installed to most modern Caterpillar and John Deere motor graders. Contact us to know if mastless system can be installed for your machine.
Trimble GCS900
Trimble GCS900 The modular solution offered by the Trimble GCS900 system starts machine control with a simple 2D system (laser or ultrasonic) that is easily upgradeable in a 3D system, either with GNSS or total station control. The system task instructor grader blade hydraulics with automatic, relative to the task terrainmodel. Automatic control understands position, height, and tilt changes.
Trimble MS smart antennas support the most common satellites (GPS, GLONASS, Galileo, BeiDou). At the same time, Trimble's patented XFill technology, along with a VRS correction signal, provides instantaneous operation of the correction data even when the connection to the base station is lost.
Trimble GCS900 with total station control
Trimble's SPS machine control with universal total stationachieve a millimeter-accurate result at high working speeds. The use of a total station is a necessary effect when working in urban debates, through the highest park, or in that building.
Trimble GCS900 GNSS
When the task is diverse terrain and precise slopes -you take advantage of GNSS positioning with one or two antennas. Accurate position information for the machine with the best possible intelligent antenna from the leading satellite positioning technology and blade automation, the control ensures an accurate result.
